Description

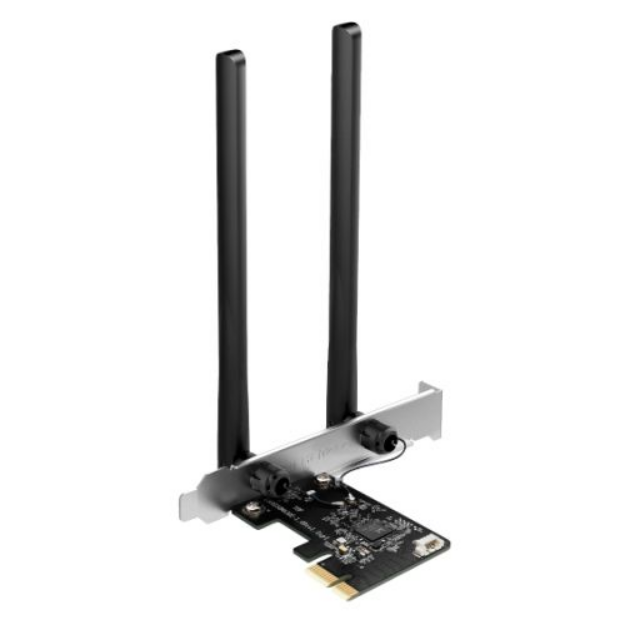

Mercusys AC1200 PCIe Adapter
- Strong Dual Band Wi-Fi Speed – Speeds up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
- Wider Signal Coverage – Two high-performance antennas
- Bluetooth 5.0 -The Bluetooth 5.0 technology achieves faster speeds and broader coverage
- MU-MIMO -Simultaneously serve several devices with no more latency or bandwidth congestion
- Improved Security -The latest security enhancement, WPA3, provides enhanced protection in personal password safety
- Backward Compatibility -Full support for 802.11ac/a/b/g/n standards
- Windows Compatible – Supported operating system: Windows 10, 11 (64 bit)
- Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location.
- Several new features are introduced in the Bluetooth Core Specification 5.0, including 2× faster speed and 4× broader coverage compared with Bluetooth
- Use of MU-MIMO requires APs to also support the corresponding feature.
- Use of WPA3 requires APs to also support the corresponding feature.
Functionality of MA30E may be restricted on some computing systems and platforms. Please try to update the device’s driver for feature compatibility.
Specifications
Adapter Type | PCI Express Adapter |
Transmission Method | Wireless |
| Bands | Dual Band |
Max Data Transfer Rate | 867 Mbps |
Standards and Protocols | IEEE 802.11 a/n/ac 5 GHz IEEE 802.11 b/g/n 2.4 GHz |
Antenna | 2 x Fixed High-Performance Omni-Directional Antennas |
| Frequency | 5 GHz: 867Mbps 2.4 GHZ: 300Mbps |
Wireless Security | WPA-PSK/WPA2-PSK/WPA3-SAE |
Dimensions | 226.3 x 120.8 x 21.5 mm |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Package Contents | AC1200 Wi-Fi Bluetooth 5.0 PCIe Adapter (MA30E) Bluetooth Header Cable Quick Installation Guide Resource CD |
| Warranty | 3 Years |
