Description

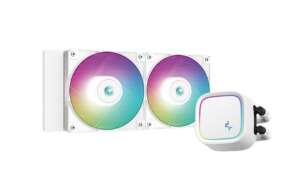

DEEPCOOL LE520 WH 240mm ARGB ALL IN ONE CPU COOLER

Powerful Heat Dissipation
Thanks to an efficient micro-channel water block, a thickened copper cold plate, and new high-performance ARGB fans, the LE520 WH achieves excellent heat dissipation of 220W TDP.

New Series Design
The LE520 WH features a new series pump with rounded corners, a square shape, bright ARGB, and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases.

High-Performance ARGB Fans
The included high-performance ARGB fans are vibrant, bright, and support various motherboard synchronizations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.

Compatibility
Intel: LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155
AMD: sTRX4 / sTR4 / AM5 / AM4

Radiator Dimensions
282 x 120 x 27 mm

Radiator Material
Aluminum

Tube length
410 mm

Pump Dimensions
86 x 74 x 57 mm

Pump Speed
3100 RPM ± 10%

Pump Noise
19 dB(A)

Pump Connector
3-pin

Pump Rated Voltage
12 VDC

Pump Rated Current
0.47 A

Pump Power Consumption
5.64 W

Fan Dimensions
120 x 120 x 25 mm

Fan Speed
500~2250 RPM ± 10%

Fan Airflow
85.85 CFM

Fan Air Pressure
3.27 mmAq

Fan Noise
=32.9 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Fluid Dynamic Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.29 A

Fan Power Consumption
3.48 W

LED Type
Addressable RGB LED

LED Connector
3-pin (+5V-D-G)

LED Rated Voltage
5 VDC

LED Power Consumption
2.2 W (PUMP)/ 3.6 W (2 x FAN)

Net Weight
1305 g
